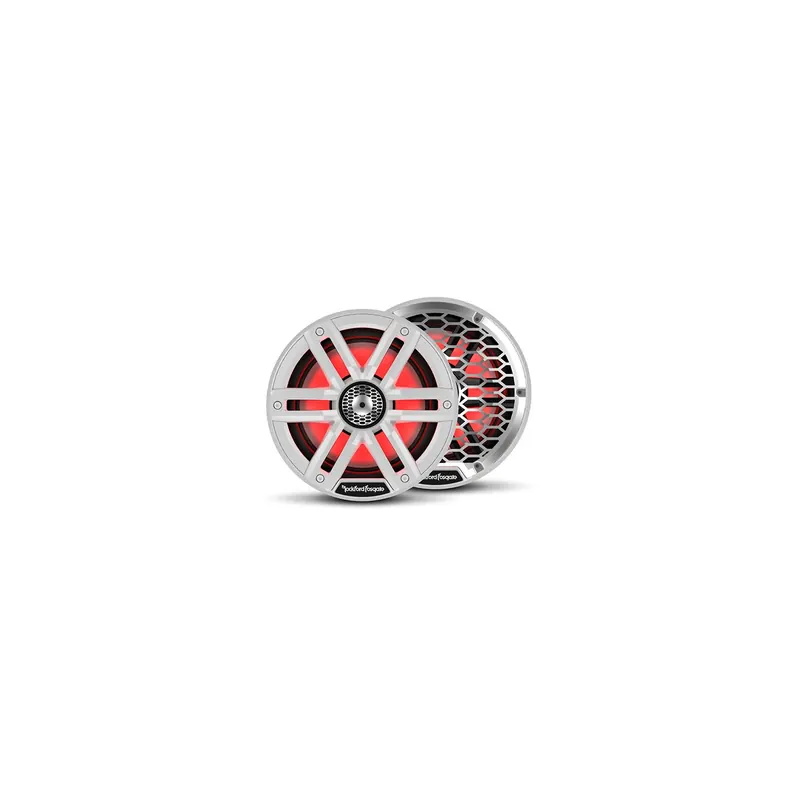

Rockford Fosgate M2-65
16,5 cm 2-Wege Marine Koaxialsystem
Beschreibung:
– Speaker Type: 2-Way Coax
– Tweeter Size (Nominal Diameter): 25 mm (1″)
– Nominal Impedance: 4-Ohm
– Midrange Size (Nominal Diameter): 20 cm (8″)
– Mounting Depth: 63,2 mm
– Grille/Trim Ring: Yes
– Power Handling: 150 Watts RMS, 600 Watts Max
– Crossover: High-Pass (HP): 12dB/Octave
– Sensitivity: 91dB @ 1W/1M, 92 dB @ 2.83V/1M
– Frequency Response: 40 Hz – 24 kHz
– Integrated 1″ (25mm) tweeter with dual neodymium magnet motor
– Laminated „PXNX“ Dome tweeter
– 1″ (25mm) High Temp Kapton™ Woofer Voice Coil Former
– Ultra-high temperature PA66 with 30% glass-fill injection-molded frame with UV inhibitors
-Gold plated Marine grade brass terminals provide a corrosion resistant connection
– Proprietary Dual Function Input Terminals
– Integrated Deutsch RGB and Speaker receptacles
– Vented motor design with water-repelling nano coated mesh screen
– 100% UV Stable Centrex plastic grill
– Linear Aramid-Polyester Composite Spider
– Fully insulated silicone tinsel leads
– UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
– VAST vertical attach surround technique increases effective radiating cone area up to 25%
– Injection molded mineral filled polypropylene cone body with UV inhibitors
– Co-molded surround and cone body
– 12dB/Oct Crossover network
– Fully sealed integrated concealed crossover (ICC) network
– Metallized Polyester Film Capacitors
– Optically clear UV stable Encapsulated LED PCB
– Multiplexed RGB Input
– Optically clear UV stable RGB Lighting Encapsulation
– Ultra-Bright, Wide Angle Tri-Color Surface Mount LED’s with Flat Mold Lenses
– Sold in pairs
Available Colors: white & black
The M2 series of Element Ready™ speakers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the speaker. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To complete your sound experience, the M2 speakers are complimented by 10-inch Infinite Baffle subwoofers, also controlled through the Color Optix™ lighting system.
Download:
– Bedienungsanleitung
